Pass Effects

Raw scene CRT pass applied

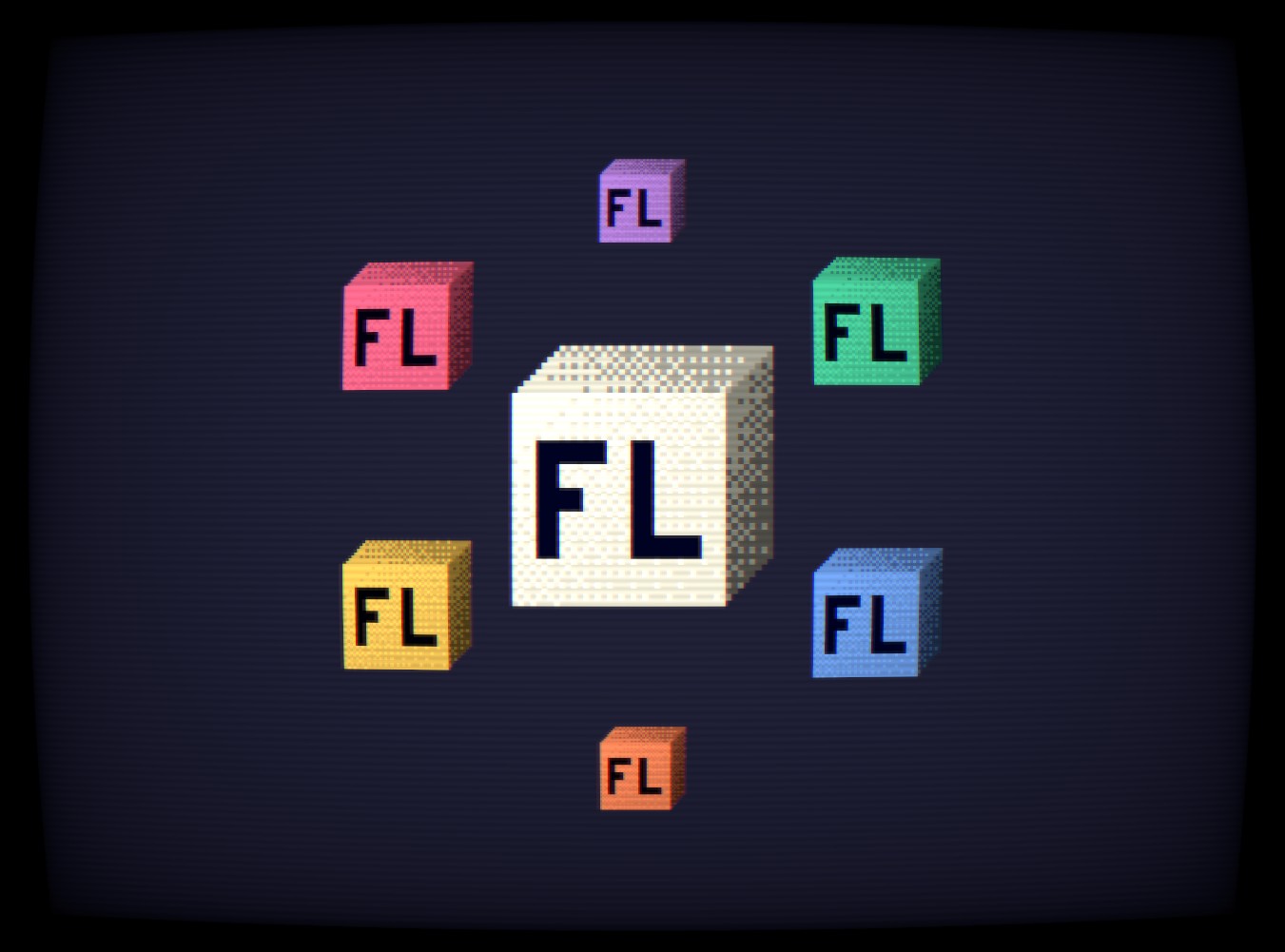

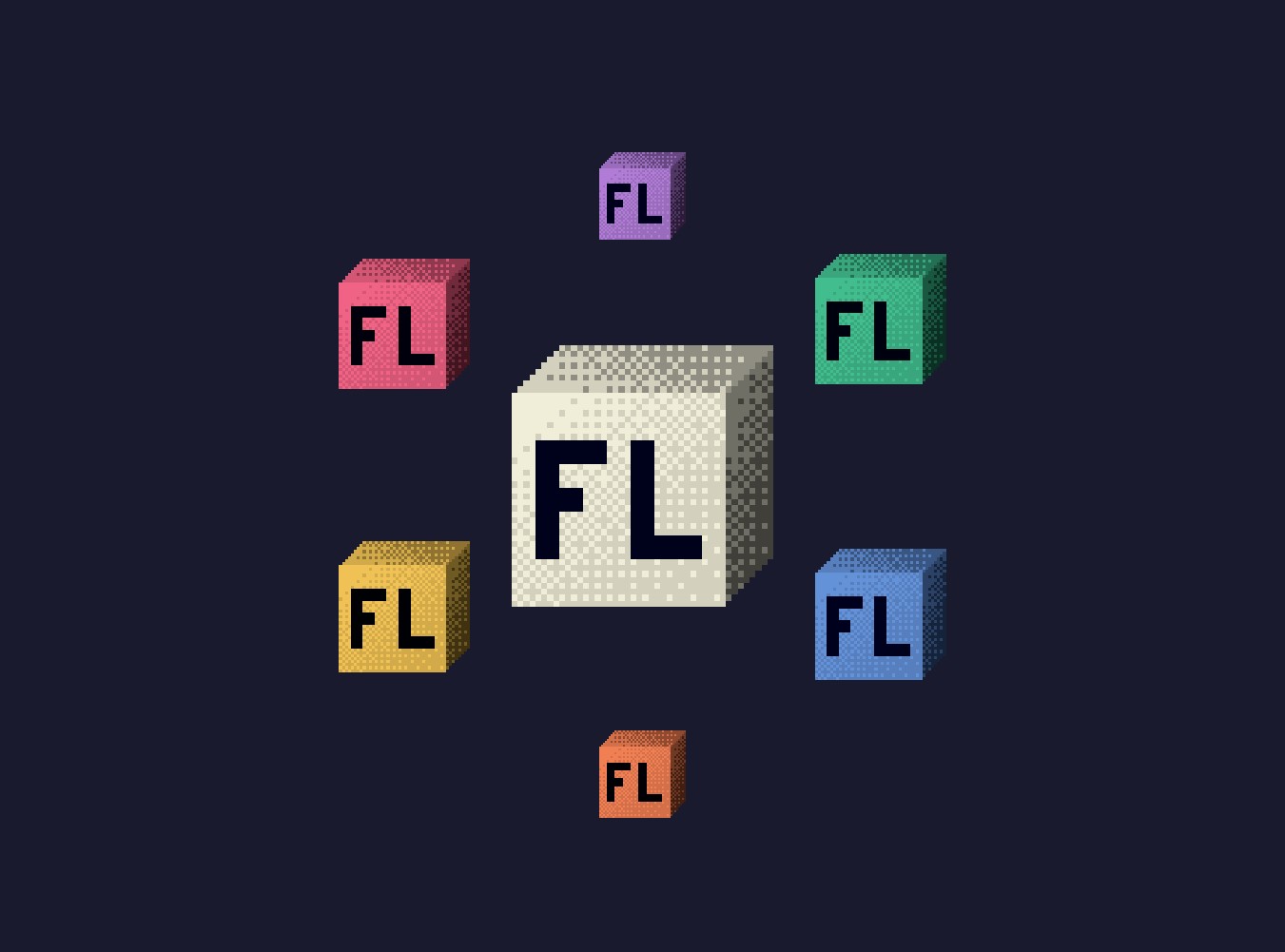

Same scene with no post-process vs a single CRT pass — barrel curvature, scanlines, and vignette all from one chain.

What you’ll learn

• The three effect layers (MaterialEffect / LightEffect / PassEffect) and which job each owns
• How to author a PassEffect with createPassEffect and chain multiple in insertion order
• The full DefaultLightEffect schema — uniforms vs compile-time constants, removed fields, categoryQuotas

---

Pass Effects are full-screen post-processing effects applied after sprite rendering. They transform the entire scene output — CRT curvature, scanlines, color quantization, VHS distortion, and more. Pass effects require a Flatland instance.

The Three Effect Layers

Three effect layers in the render pipeline

three-flatland’s effect system is layered, and the layers are easy to conflate because they share a factory shape (createXEffect) and a schema-driven API. Pick the right one for the job:

Layer	Factory	Scope	When to Reach For It
MaterialEffect	createMaterialEffect	Per-sprite fragment shader	Damage flash, outline, dissolve, hue shift — anything that transforms one sprite’s color. Channel providers (NormalMapProvider) are also MaterialEffects — see the Baked Normal Pipeline for how to get a normal-map texture into NormalMapProvider.
LightEffect	createLightEffect	Scene singleton — drives every lit sprite	Choose or author the lighting model: tiled Forward+, GI, banded cel, etc. Exactly one is bound to a Flatland instance via setLighting(). See the Lighting guide.
PassEffect	createPassEffect	Full-screen post-process	CRT, LCD grid, scanlines, VHS, chromatic aberration. Chained on the rendered scene after lighting.

The rest of this guide focuses on PassEffect; for LightEffect authoring see the Lighting guide, and for MaterialEffect see the TSL Nodes guide.

Quick disambiguation

MaterialEffects and PassEffects both transform color, but at different scales: a MaterialEffect runs once per sprite fragment with access to that sprite’s UVs and atlas frame, a PassEffect runs once per screen fragment with access to the composited scene texture. LightEffects are different again — they’re not a transform, they’re the lighting model itself, consumed by every lit sprite’s MaterialEffect chain.

Creating a Pass Effect

Use createPassEffect with a name, a schema defining parameters, and a pass builder function:

import { createPassEffect } from 'three-flatland'
import { posterize } from '@three-flatland/nodes'

const PosterizePass = createPassEffect({
  name: 'posterize',
  schema: { bands: 6 },
  pass: ({ uniforms }) => (input, uv) => {
    return posterize(input, uniforms.bands)
  },
})

The pass callback receives a context with TSL uniform nodes for each schema field and returns a PassEffectFn:

type PassEffectFn = (input: Node<'vec4'>, uv: Node<'vec2'>) => Node<'vec4'>

• input — the scene color (or previous pass output)
• uv — screen-space UV coordinates

Schema fields become typed properties on instances with zero-cost uniform updates — changing a value updates the GPU uniform directly without rebuilding the shader graph.

Using Pass Effects

Three.js

import { Flatland, createPassEffect } from 'three-flatland'
import { posterize, crtVignette } from '@three-flatland/nodes'

const PosterizePass = createPassEffect({
  name: 'posterize',
  schema: { bands: 6 },
  pass: ({ uniforms }) => (input, uv) => posterize(input, uniforms.bands),
})

const VignettePass = createPassEffect({
  name: 'vignette',
  schema: { intensity: 0.4, curvature: 2 },
  pass: ({ uniforms }) => (input, uv) =>
    crtVignette(input, uv, uniforms.intensity, uniforms.curvature),
})

const flatland = new Flatland({ viewSize: 400, clearColor: 0x1a1a2e })

// Add passes — they chain in insertion order
const post = new PosterizePass()
const vig = new VignettePass()
flatland.addPass(post).addPass(vig)

// Zero-cost parameter updates
post.bands = 10
vig.intensity = 0.25

React

import { useEffect, useRef } from 'react'
import { extend, useFrame, useThree } from '@react-three/fiber/webgpu'
import { Flatland, createPassEffect } from 'three-flatland/react'
import { posterize, crtVignette } from '@three-flatland/nodes'
import type { WebGPURenderer } from 'three/webgpu'

extend({ Flatland })

const PosterizePass = createPassEffect({
  name: 'posterize',
  schema: { bands: 6 },
  pass: ({ uniforms }) => (input, uv) => posterize(input, uniforms.bands),
})

const VignettePass = createPassEffect({
  name: 'vignette',
  schema: { intensity: 0.4, curvature: 2 },
  pass: ({ uniforms }) => (input, uv) =>
    crtVignette(input, uv, uniforms.intensity, uniforms.curvature),
})

function Scene() {
  const flatlandRef = useRef(null)
  const gl = useThree((s) => s.gl)

  useEffect(() => {
    const flatland = flatlandRef.current
    const post = new PosterizePass()
    post.bands = 10
    const vig = new VignettePass()
    vig.intensity = 0.25
    flatland.addPass(post).addPass(vig)
    return () => flatland.clearPasses()
  }, [])

  useFrame(() => {
    flatlandRef.current?.render(gl as unknown as WebGPURenderer)
  }, { phase: 'render' })

  return (
    <flatland ref={flatlandRef} viewSize={80} clearColor={0x1a1a2e}>
      {/* sprites */}
    </flatland>
  )
}

Pass Chaining Advanced

Multiple passes compose into a single pipeline. Each pass receives the previous pass’s output:

Pass-chain cost — color-math passes fuse into one GPU program; a UV-sampling pass forces a convertToTexture boundary (render to texture, then sample).

flatland.addPass(posterize)   // 1. Reduce color bands
flatland.addPass(lcdGrid)     // 2. Apply LCD pixel grid
flatland.addPass(backlight)   // 3. Add backlight bleed
flatland.addPass(vignette)    // 4. Darken edges

Performance note

Passes that only do color math (posterize, quantize, scanlines, vignette) merge into a single shader — TSL compiles the chain into one GPU program. Passes that call convertToTexture(input) internally (CRT curvature, VHS distortion, chromatic aberration) introduce an intermediate texture sample because they need to read at different UVs. Stack the cheap ones freely; reach for the texture-sampling ones with intent.

Dynamic Switching

Swap pass chains at runtime:

flatland.clearPasses()

// Apply a new preset
const crt = new CRTPass()
flatland.addPass(crt)

Pass Management API

Method	Description
flatland.addPass(pass, order?)	Add a pass (optional explicit order)
flatland.removePass(pass)	Remove a specific pass
flatland.clearPasses()	Remove all passes
flatland.passes	Read-only array of current passes
pass.enabled	Toggle a pass without removing it

Effects That Need Texture Sampling

Some effects distort UVs — they read pixels at offset positions. These require convertToTexture(input) to create a sampable texture from the node graph:

import { convertToTexture } from 'three/tsl'
import { createPassEffect } from 'three-flatland'
import { vhsDistortion } from '@three-flatland/nodes'

const VHSPass = createPassEffect({
  name: 'vhs',
  schema: { time: 0, intensity: 0.012, noiseAmount: 0.05 },
  pass: ({ uniforms }) => (input, uv) => {
    const tex = convertToTexture(input)
    return vhsDistortion(tex, uv, uniforms.time, uniforms.intensity, uniforms.noiseAmount)
  },
})

Effects that need convertToTexture: crtComplete, crtCurvature, vhsDistortion, chromaticAberration.

Effects that work directly on the color node: posterize, quantize, scanlines, lcdGrid, crtVignette, lcdBacklightBleed, staticNoise.

Animating Parameters

Schema properties update the GPU uniform directly — no shader recompilation:

const vhs = new VHSPass()
flatland.addPass(vhs)

// In the render loop
vhs.time = elapsed        // Drive distortion animation
vhs.intensity = 0.02      // Adjust strength

Available TSL Nodes

All post-processing nodes are exported from @three-flatland/nodes:

CRT Display

Node	Description
crtComplete	Full CRT simulation (curvature + scanlines + bloom + vignette + color bleed)
crtCurvature	Barrel distortion for curved screen
crtVignette	Edge darkening
crtBloom	Glow from bright pixels
crtColorBleed	RGB channel offset
crtConvergence	RGB convergence offset

Scanlines

Node	Description
scanlinesSmooth	Sine-wave scanline overlay
scanlines	Hard scanline pattern
scanlinesGlow	Bright scanline edges
scanlinesInterlaced	Alternating-field interlace

LCD Display

Node	Description
lcdGrid	Visible pixel grid (handheld console)
lcdBacklightBleed	Uneven backlight glow
dotMatrix	Dot matrix display pattern
lcdPocket	Game Boy-style LCD
lcdGBC	Game Boy Color LCD

Retro Color

Node	Description
posterize	Reduce color bands
quantize	8-bit color reduction
bayerDither4x4	Ordered dithering
palettize	Map to a color palette

Analog Video

Node	Description
vhsDistortion	VHS tracking errors and wave distortion
staticNoise	Analog TV snow
chromaticAberration	RGB channel separation
ntscComposite	NTSC signal artifacts
analogGlitch	Random glitch bands

DefaultLightEffect Schema

DefaultLightEffect is a LightEffect, not a PassEffect — but it’s the most heavily-customized effect in the preset set, and its schema is documented here as the canonical place readers will look for “what knobs does the recommended lighting actually have?”. For an introduction to LightEffects in general, see the Lighting guide.

The schema splits cleanly into two flavors: uniforms that update at zero cost, and compile-time constants that trigger a shader rebuild when assigned.

Uniforms (live-tunable, no rebuild)

Assigning these is a .value = write on a TSL uniform node — costs nothing. Animate them in your render loop without thinking about cost.

Uniform	Default	Description
shadowStrength	0.6	Lerp factor from lit → traced shadow. 0 disables shadow contribution; 1 is full opacity.
shadowBias	0.5	Hit epsilon (world units) — SDF samples below this count as an occluder strike, terminating the trace.
shadowStartOffsetScale	1	Multiplier on each sprite’s per-instance shadowRadius when the trace origin sits inside that caster’s silhouette. Nudge above 1.0 if you see residual self-shadow on elongated sprites.
shadowMaxDistance	0	Max world-space distance a shadow extends from the receiver before fading. 0 disables falloff (binary shadow at any distance). Typical: 100–300 — keeps near-caster shadows solid while hiding cone-fan artifacts far from the caster.
shadowPixelSize	0	Snap the shadow trace’s surface position to a world-unit block grid (1/2/4/8). Purely aesthetic — does NOT reduce GPU cost.
bands	8	Cel-band count for the direct-light contribution.
pixelSize	0	Surface-position snap cell width for the lighting math.
glowRadius	0	Broad secondary falloff radius (multiplied into per-light effective distance).
glowIntensity	0	Strength of the broad glow added to point/spot attenuation.
lightHeight	0.75	Universal +Z component added to every light’s direction — higher reads as more top-lit.
rimIntensity	0	Strength of the rim-lighting accumulator. Rim power is fixed at (1 − N·L)².

Compile-Time Constants (writable, but each write rebuilds)

These are stored as primitive constants on the effect instance. Setting them is legal at runtime, but each assignment triggers a shader rebuild and emits a dev-mode warning:

[three-flatland] defaultLight.glowEnabled changed at runtime — triggers shader rebuild

The payoff: when off, the gated branch never reaches the GPU, so a scene that doesn’t use glow / rim / snap pays zero ops for those features.

Constant	Default	What it gates
glowEnabled	false	Broad-falloff “glow” added to point/spot attenuation. ~9 ops per light per fragment when on.
rimEnabled	false	Rim-lighting accumulator + the inner (1 − N·L)² per-light term. ~6 ops per light per fragment when on.
pixelSnapEnabled	false	Surface-position snap for the lighting math (chunky cel cells).
shadowPixelSnapEnabled	false	Surface-position snap for the shadow trace origin (blocky shadow silhouettes).
bandsEnabled	true	Cel-band quantization of the direct-light contribution.

Pattern in the example: derive the boolean from the uniform crossing zero, so the shader rebuilds on the 0 → N transition and live-updates while the slider stays above 0.

const bandsEnabled = bands > 0
const pixelSnapEnabled = pixelSize > 0
const shadowPixelSnapEnabled = shadowPixelSize > 0
const glowEnabled = glowRadius > 0
const rimEnabled = rimIntensity > 0

Cel quantization is mean-preserving but visually inflates mid-tones

The cel formula floor(x*N + 0.5)/N rounds mid-tones up to the next quantization step — the boost is visible, while the compensating darkenings happen at very low values where they read as “still black.” Net effect: cel mode looks BRIGHTER than smooth mode for the same physical scene values. Disabling bandsEnabled may make a calibrated scene look dimmer until you retune intensities (torches, fills, ambient) upward to compensate. The smooth branch is doing nothing wrong — the cel branch was inflating mid-tones.

Removed Fields

The following fields existed in earlier versions and have been removed. If you’re migrating, delete the assignments — they’ll be silently undefined now.

• rimPower — rim sharpness is now hardcoded as (1 − N·L)². Saves a per-light pow() (an SFU instruction) for the case nobody actually slid at runtime. Fork the effect if you need a different curve.
• capShadowStrength / capShadowThreshold — the manual wall-cap darkening hack is replaced by elevation-aware N·L. Walls whose elevation exceeds lightHeight physically receive a negative L.z, clamp N·L to zero, and end up with only ambient — no special-case uniform required.

categoryQuotas — JSX-Only Sugar

DefaultLightEffect instances expose a categoryQuotas accessor that proxies to the underlying forwardPlus.setFillQuota(category, quota) API. It’s purely a declarative convenience for JSX users who don’t want to grab a ref and reach into forwardPlus:

<defaultLightEffect
  attach={attachLighting}
  categoryQuotas={{ slime: 4 }}
/>

Each set RESETS all buckets to default first, then applies the record — so removing a key between renders correctly clears that bucket’s quota override (rather than leaving it stuck at the previous value).

For the full story on what these buckets are and how category maps onto them — including the per-category quota tuning APIs — see Shadow Casting, Importance & Categories in the Lighting guide.

Next Steps

• Pass Effects Example — Interactive demo with 5 presets
• Lighting Guide — What a LightEffect actually is, plus Light2D fields
• TSL Nodes Guide — Per-sprite material effects and low-level TSL usage
